CS10

CS10

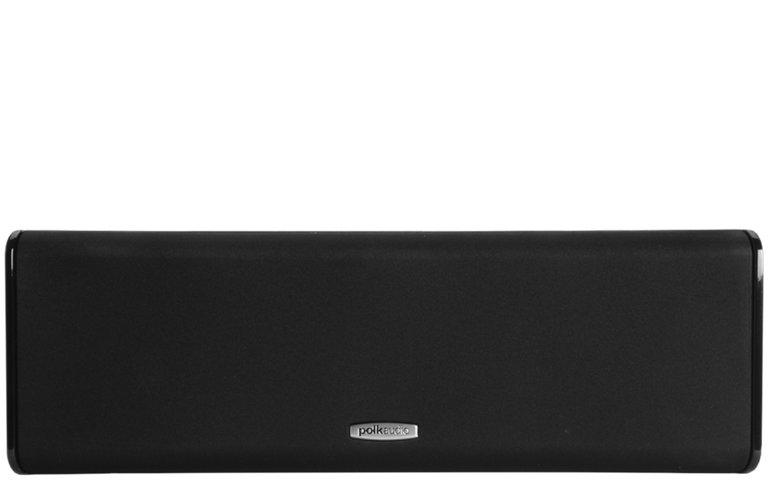

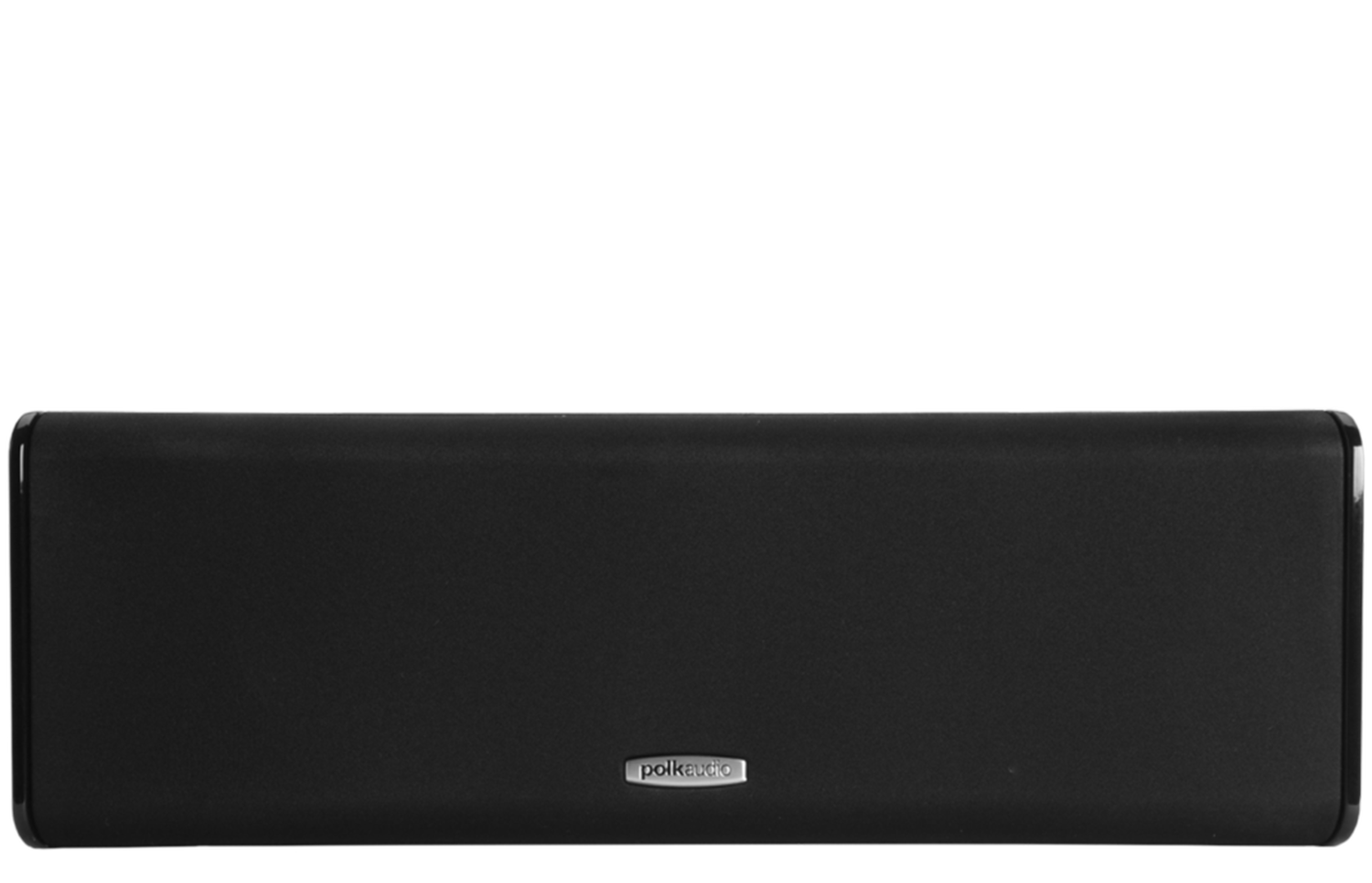

TSI Series Center Channel Speaker with 5.25" Driver

Combines smaller drivers and narrow baffle geometry for wider range and a more spacious sound stage.

Color
Black Ch
Black
CS10
Details & Specifications
  • Total Pieces 1
  • Original Purchaser Only Yes
  • Total Pieces 1
  • Height 6.5" (16.51 cm)
  • Width 20" (50.8 cm)
  • Depth 9.75" (24.77 cm)
  • Weight 16 lbs (7.26 kg)
  • Driver Complement • (2)  5.25" (13.34 cm) d (Round) Bi-laminate organic fiber cone - Mid/Woofer
    • (1)  1" (2.54 cm) d (Round) Silk dome Dynamic Balance - Tweeter
  • Total Frequency Response 53 Hz → 25,000 Hz
  • Nominal Impedance 8 ohms
  • Sensitivity (1 watt @ 1 meter) 91 dB
  • Lower and Upper -3dB Limits 63 Hz → 24,000 Hz
